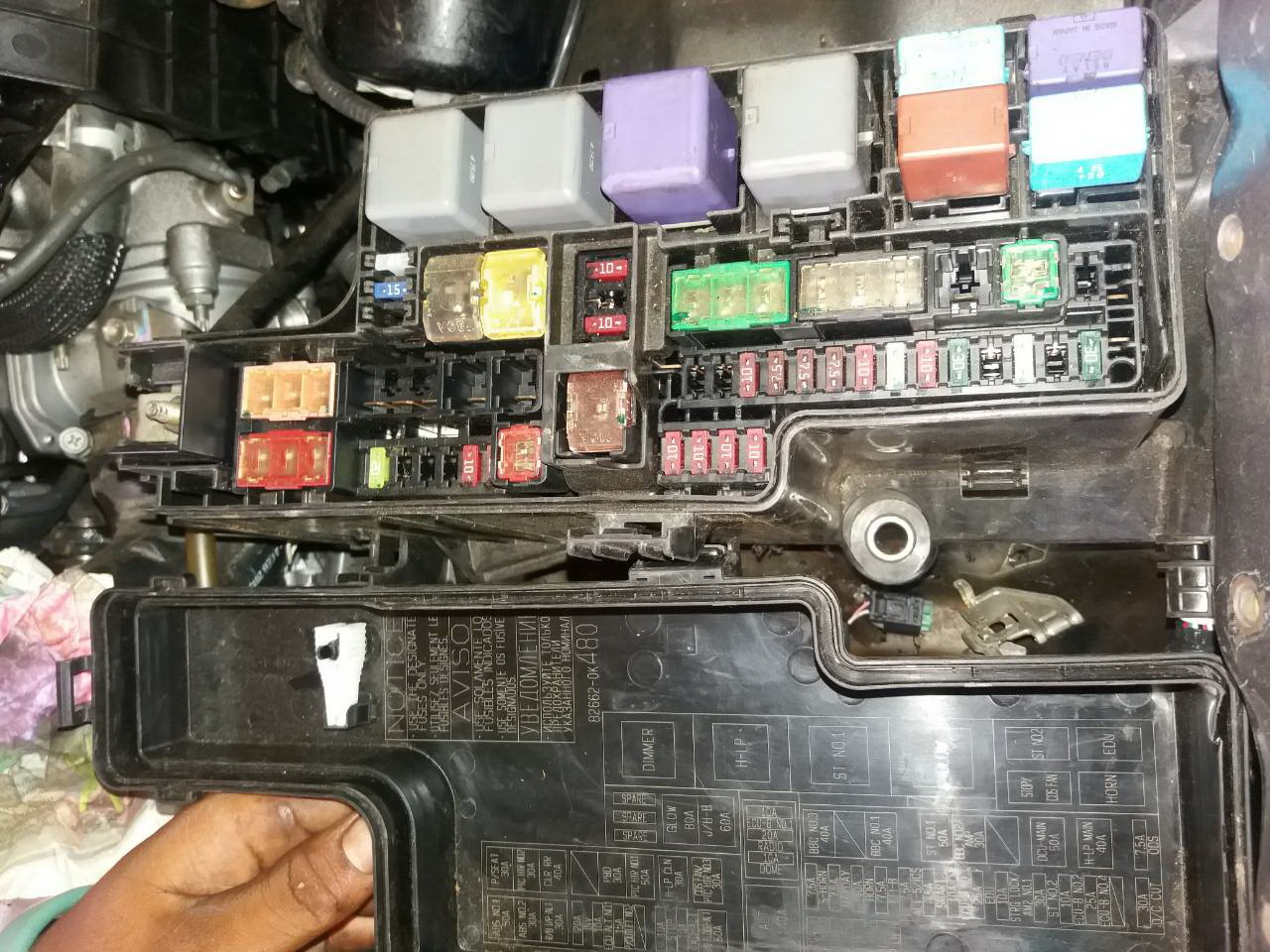

กล่องฟิวส์ในห้องเครื่องยนต์ โตโยต้ารีโว

วันจันทร์ที่ 18 มกราคม พ.ศ. 2559

กล่องฟิวส์ในห้องเครื่องยนต์ โตโยต้ารีโว

FUSE	FUSE NAMES	SYSTEM
7.5A	ALT-S/ICS	Charging (w/ Stop & Start System)
7.5A	EFI-B	Cruise Control ECT and A/T Indicator (1GD-FTV, 2GD-FTV) ECT and A/T Indicator (2TR-FE) Engine Control (1GD-FTV, 2GD-FTV) Engine Control (2TR-FE)
7.5A	SMART	Immobiliser System (w/ Smart Entry & Start System) Smart Entry & Start System Starting (w/ Smart Entry & Start System) Steering Lock Wireless Door Lock Control (w/ Smart Entry & Start System)
10A	4WD-ALT	4WD ABS (w/ VSC) ABS (w/o VSC) Downhill Assist Control Hill-Start Assist Control TRC VSC
10A	DOME	Immobiliser System (w/ Smart Entry & Start System) Interior Light Smart Entry & Start System Starting (w/ Smart Entry & Start System) Steering Lock Theft Deterrent Wireless Door Lock Control (w/ Smart Entry & Start System) Wireless Door Lock Control (w/o Smart Entry & Start System)
10A	ECU-B NO.1	4WD ABS (w/ VSC) ABS (w/o VSC) Air Conditioner (Automatic) Audio System Charging (w/ Stop & Start System) Charging (w/o Stop & Start System) Clock Combination Meter Cruise Control Door Lock Control Downhill Assist Control ECT and A/T Indicator (1GD-FTV, 2GD-FTV) ECT and A/T Indicator (2TR-FE) Engine Control (1GD-FTV, 2GD-FTV) Engine Control (2TR-FE) Headlight Headlight Beam Level Control (Automatic) Hill-Start Assist Control Illumination Immobiliser System (w/ Smart Entry & Start System) Interior Light Key Reminder (w/o Smart Entry & Start System) Light Reminder Navigation System Rear View Monitor System Seat Belt Warning Smart Entry & Start System SRS Starting (w/ Smart Entry & Start System) Steering Lock Stop & Start System Taillight Theft Deterrent TRC Turn Signal and Hazard Warning Light VSC Wireless Door Lock Control (w/ Smart Entry & Start System) Wireless Door Lock Control (w/o Smart Entry & Start System)
10A	ECU-B NO.2	Immobiliser System (w/o Smart Entry & Start System)
10A	ECU-B NO.3	Air Conditioner (Automatic) Immobiliser System (w/ Smart Entry & Start System) Smart Entry & Start System Starting (w/ Smart Entry & Start System) Steering Lock Theft Deterrent Wireless Door Lock Control (w/ Smart Entry & Start System) Wireless Door Lock Control (w/o Smart Entry & Start System)
10A	H-LP LH-HI	Headlight
10A	H-LP LH-LO	Headlight Headlight Beam Level Control (Automatic) Headlight Beam Level Control (Manual)
10A	H-LP RH-HI	Headlight
10A	H-LP RH-LO	Headlight
10A	HORN	Horn Immobiliser System (w/ Smart Entry & Start System) Smart Entry & Start System Starting (w/ Smart Entry & Start System) Steering Lock Theft Deterrent Wireless Door Lock Control (w/ Smart Entry & Start System) Wireless Door Lock Control (w/o Smart Entry & Start System)
10A	STOP	ABS (w/ VSC) ฟิวส์เอบีเอส เฉพาะรุ่นที่มีระบบ VSC ABS (w/o VSC) ฟิวส์วงจรเอบีเอส เฉพาะรุ่นที่ไม่มีระบบ VSC Charging (w/ Stop & Start System) ฟิวส์วงจรไฟชาร์จ เฉพาะรุ่นที่มีระบบ ดับและสตาร์ทเครื่องยนต์อัตโนมัติ Cruise Control ฟิวส์วงจรระบบควบคุมความเร็วอัตโนมัติ Downhill Assist Control ฟิวส์วงจรระบบควบคุมการลงทางลาดชัน ECT and A/T Indicator (1GD-FTV, 2GD-FTV) ECT and A/T Indicator (2TR-FE) Engine Control (1GD-FTV, 2GD-FTV) Engine Control (2TR-FE) Hill-Start Assist Control Immobiliser System (w/ Smart Entry & Start System) Shift Lock Smart Entry & Start System Starting (w/ Smart Entry & Start System) Steering Lock Stop Light TRC VSC Wireless Door Lock Control (w/ Smart Entry & Start System)
10A	STRG LOCK/AM2 NO.1	Cruise Control ECT and A/T Indicator (1GD-FTV, 2GD-FTV) ECT and A/T Indicator (2TR-FE) Engine Control (1GD-FTV, 2GD-FTV) Engine Control (2TR-FE) Immobiliser System (w/ Smart Entry & Start System) Smart Entry & Start System Starting (w/ Smart Entry & Start System) Starting (w/o Smart Entry & Start System) Steering Lock Wireless Door Lock Control (w/ Smart Entry & Start System)
15A	INJ	Combination Meter ฟิวส์วงจรเรือนไมล์ ECT and A/T Indicator (2TR-FE) Engine Control (2TR-FE) Ignition ฟิวส์วงจรจุดระเบิด
20A	A/F HTR	ECT and A/T Indicator (2TR-FE) Engine Control (2TR-FE)
20A	INV	Power Outlet (w/ Voltage Inverter)
20A	RADIO	Audio System ฟิวส์วงจรวิทยุตดิดรถ Navigation System ฟิวส์วงจรระบบจีพีเอสนำทาง Rear View Monitor System ฟิวส์วงจรกล้องมองหลัง
25A	ECU-B NO.4	Automatic Light Control ฟิวส์วงจรเปิดไฟอัตโนมัติ Door Lock Control Front Fog Light ฟิวส์วงจรไฟตัดหมอกด้านหหน้า Headlight ฟิวส์วงจรไฟหน้ารถ Illumination Immobiliser System (w/ Smart Entry & Start System) Interior Light ฟิวส์วงจรแสงสว่างภายใน Power Window (All Door Jam Protection) Power Window (Driver's Door Only Jam Protection) Rear Fog Light ฟิวส์วงจรไฟตัดหมอกด้านหลัง Smart Entry & Start System Starting (w/ Smart Entry & Start System) Steering Lock ฟิวส์วงจรล๊อคพวงมาลัย Taillight ฟิวส์วงจรไฟท้าย Theft Deterrent ฟิวส์วงจรระบบกันโขมย Wireless Door Lock Control (w/ Smart Entry & Start System) Wireless Door Lock Control (w/o Smart Entry & Start System)
25A	EDU	Cruise Control ECT and A/T Indicator (1GD-FTV, 2GD-FTV) Engine Control (1GD-FTV, 2GD-FTV)
30A	ABS NO.2	ABS (w/ VSC) ABS (w/o VSC) Downhill Assist Control Hill-Start Assist Control TRC VSC
30A	D/C CUT	Power Source
30A	P/SEAT	Power Seat (Driver's Seat)
30A	R/B I/P-ALT	Power Source
30A	ST NO.1	Starting (w/o Smart Entry & Start System)
30A	ST NO.2	Immobiliser System (w/ Smart Entry & Start System) Smart Entry & Start System Starting (w/ Smart Entry & Start System) Starting (w/o Smart Entry & Start System) Steering Lock Wireless Door Lock Control (w/ Smart Entry & Start System)
40A	BBC NO.1	Stop & Start System
40A	BBC NO.3	Stop & Start System
40A	H-LP MAIN	Automatic Light Control Headlight Headlight Beam Level Control (Automatic) Headlight Beam Level Control (Manual) Rear Fog Light
50A	ABS NO.1	ABS (w/ VSC) ABS (w/o VSC) Downhill Assist Control Hill-Start Assist Control TRC VSC
50A	AIR PMP	ECT and A/T Indicator (2TR-FE) Engine Control (2TR-FE)
50A R/B	FLOOR-ALT	Power Source
50A	ST NO.1	Immobiliser System (w/ Smart Entry & Start System) Smart Entry & Start System Starting (w/ Smart Entry & Start System) Starting (w/o Smart Entry & Start System) Steering Lock Wireless Door Lock Control (w/ Smart Entry & Start System)
60A	J/B-B	Power Source
80A	GLOW	Cruise Control ECT and A/T Indicator (1GD-FTV, 2GD-FTV) Engine Control (1GD-FTV, 2GD-FTV)
140A	ALT	Charging (w/ Stop & Start System) Charging (w/o Stop & Start System) Immobiliser System (w/ Smart Entry & Start System) Power Window (Driver's Door Only Jam Protection) Smart Entry & Start System Starting (w/ Smart Entry & Start System) Steering Lock Wireless Door Lock Control (w/ Smart Entry & Start System)
